LT Conversion
LT4 Aston Martin Vantage
~700 Bhp
Craig needed something to replace his E92 M3 daily, when this Vantage appeared. It's running an LT4 engine with Corvette Z06 torque tube, gearbox and diffs. Driftworks have recorded multiple videos detailing the build.
Specifications
Driveline

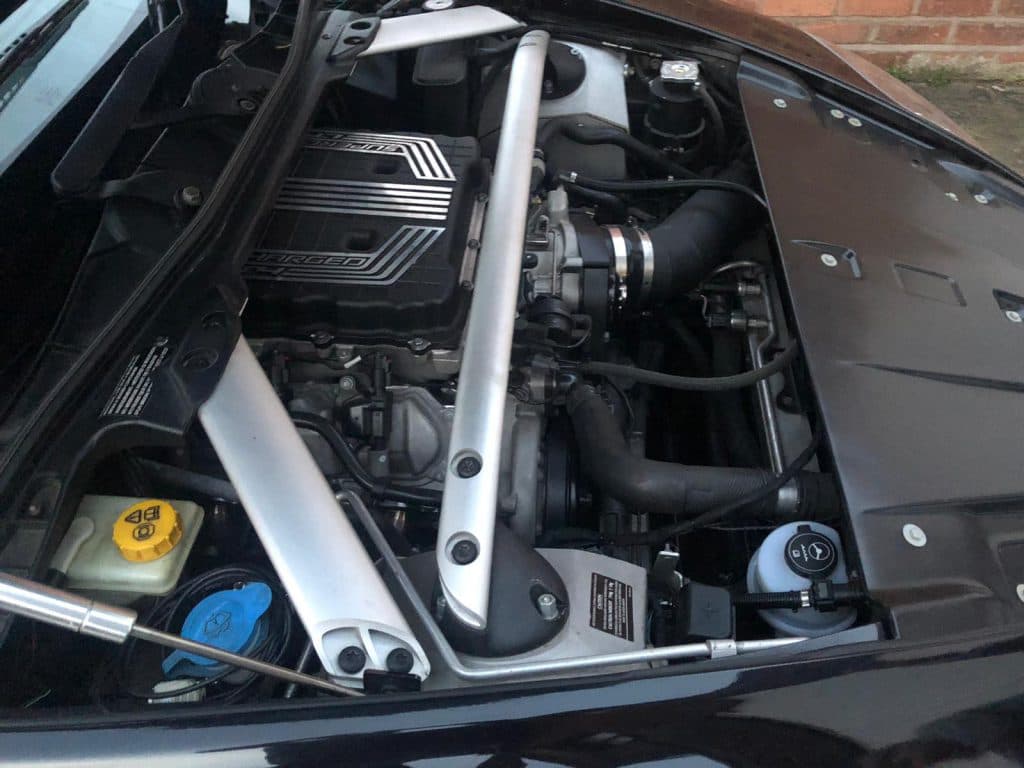

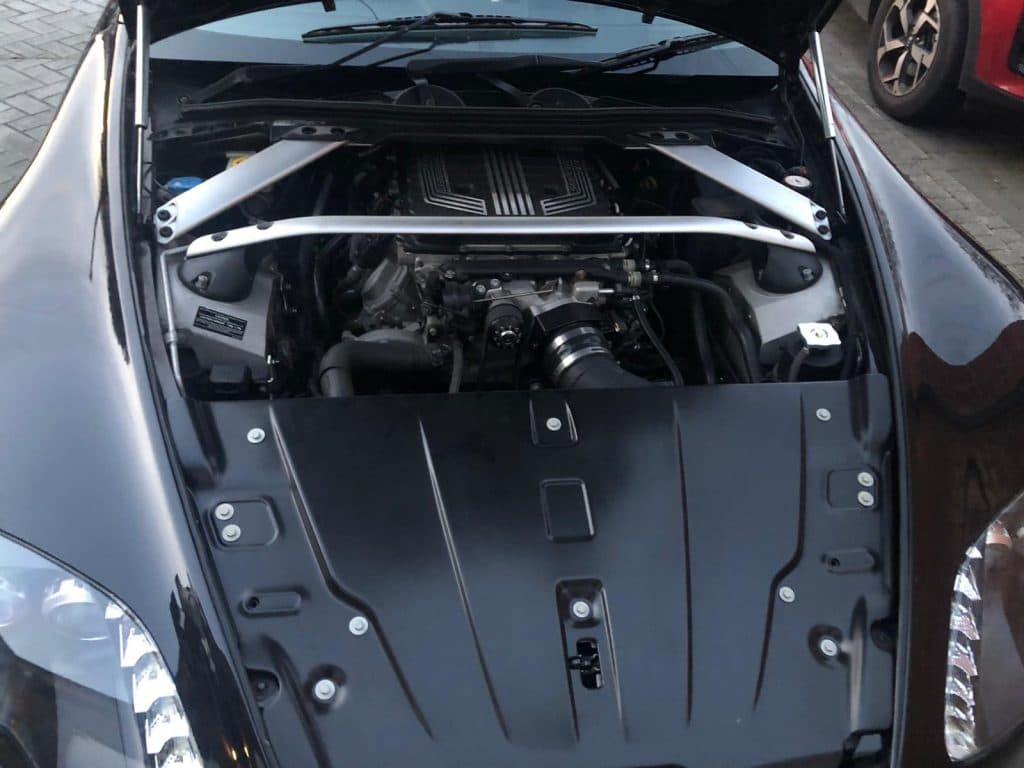

- 2018 GM LT4 supercharged engine
- Overdrive pulley
- 103mm throttle body
- 4" intake pipe
- Tubular 1⅞" headers
- Twin 3" exhaust, standard rear box converted to full 3" flow
- Z06 Corvette torque tube, gearbox and differential
- Monster triple plate clutch
- Dave Mac bespoke drive shafts
- Full bespoke engine and gearbox mounts
- Z06 Corvette gear linkage and gearknob
- Emerald ECU (controls dash, fans, throttle, A/C etc.)
- Inter-chilled charge cooler circuit
Chassis
- Standard Aston Martin shocks with HSD springs on custom adjustable platform

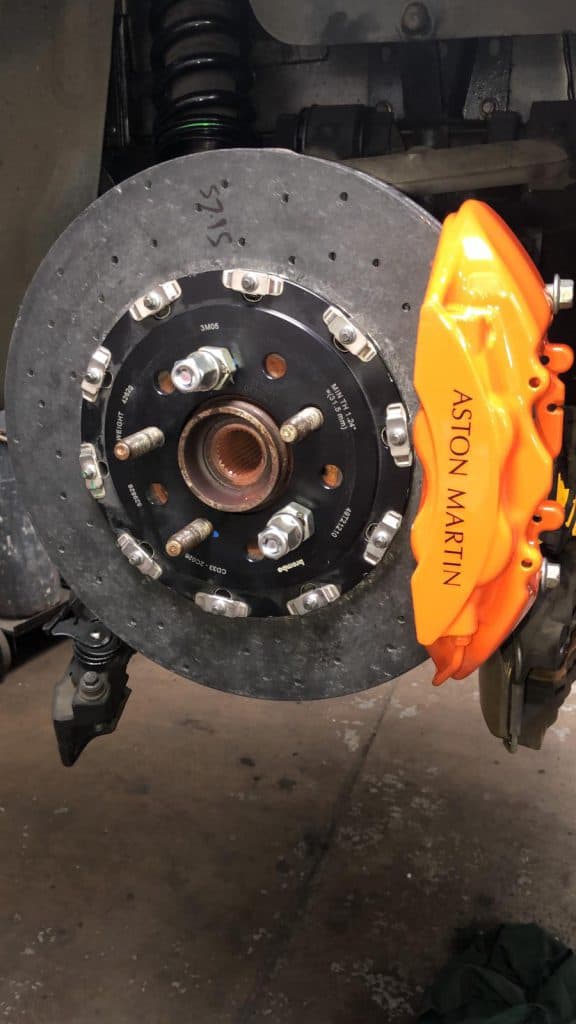

- 400mm front carbon ceramic Brembo brakes
- 360mm rear carbon ceramic Brembo brakes
Wheels/Tyres
- WORK Gnosis FMB01 Wheels
- 19×11 rear 295/35/19 Michelin
- 19×9.5 front 265/35/19 Michelin
Exterior
- Carbon side gills

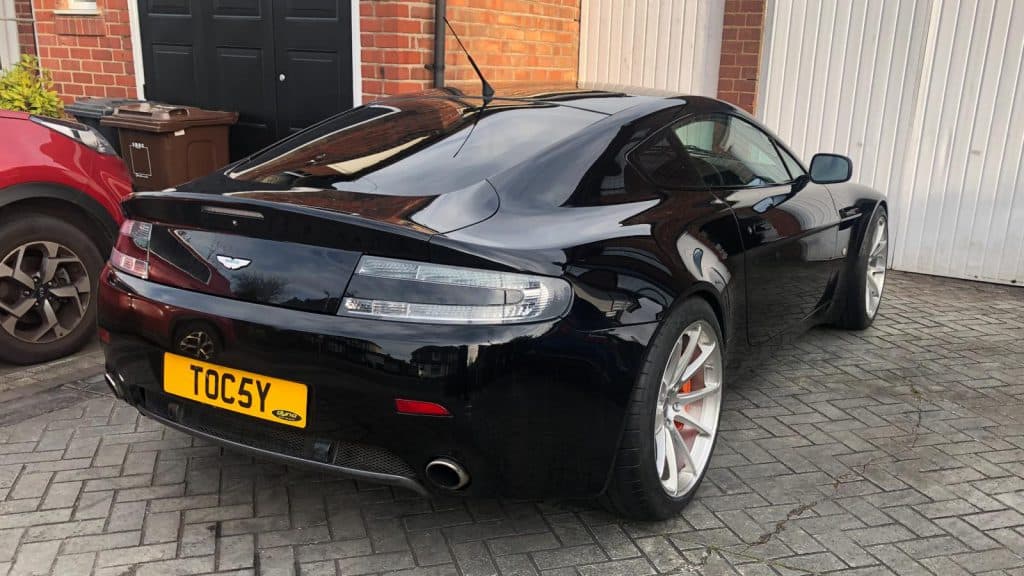

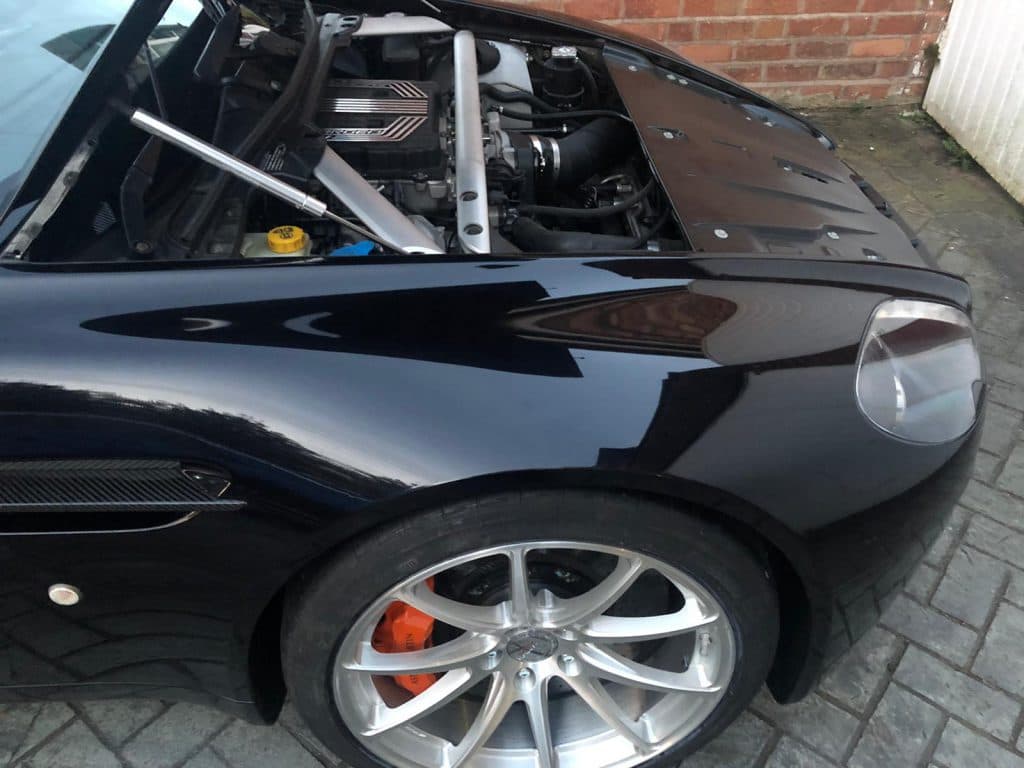

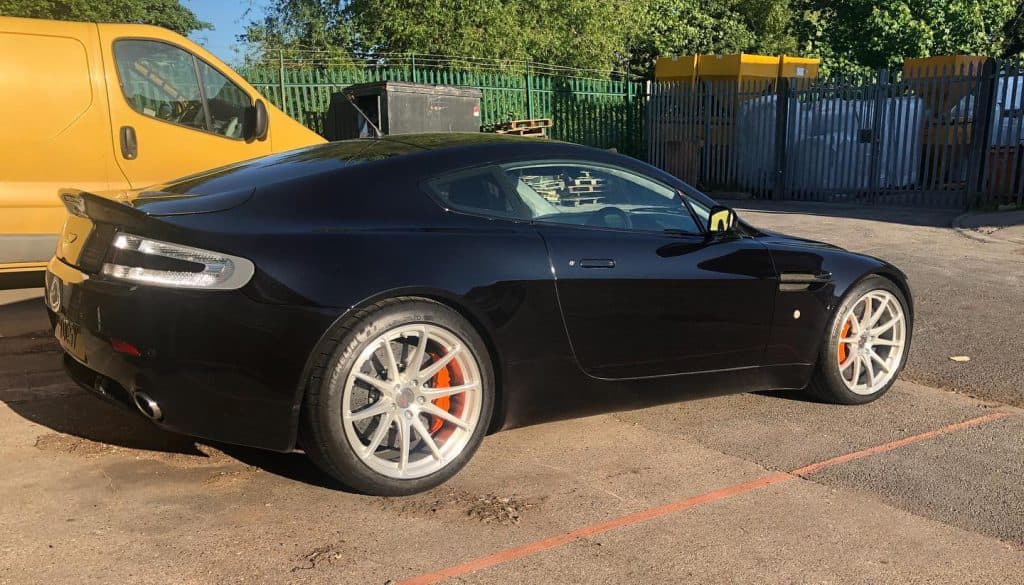

Gallery
Videos
Driftworks have kindly recorded and edited the build progress of this car.
DynoTorque is starting a new project – Aston Martin V8 Vantage with a supercharged LT4 V8 – Part 1
Aston Martin V8 Vantage LT4 V8 swap – Part 2
